Integrate JasperReports with EnterWorks

1. Update the shared configuration properties as shown below. When you edit the sharedConfig.properties file, if the settings do not exist, add them.

   • report.manager.url=http://<jasperreportsservername>:8080/jasperserver-pro/flow.html?_flowId=homeFlow&j_username=superuser&j_password=superuser

   • report.listing.url=http://<WebServerName>:8080/jasperserver-pro/flow.html?_flowId=searchFlow&mode=search&j_username=superuser&j_password=superuser

2. Open the EPX Enterworks.properties file for editing. The file is in the folder:

   \\<AppServerName>\\Enterworks\EPX32\bin\conf

3. Add the following entry at the end of the file. The target directories can be set to any place on the network that the Enable services account has access to. Customize the code below as necessary.

   ##Jasper report scheduler properties
   jasper.server.url=http://<WebServerName>:8080/jasperserver-pro/services/repository
   jasper.server.login=superuser
   jasper.server.password=superuser
   jasper.targetDirectory.brands=\\\\wa00433q\\Enterworks\\<customer specific>\\ProductGuides\\Brands
   jasper.targetDirectory.brandFamilies=\\\\<AppServerName>
   \\Enterworks\\<customer specific>
   \\ProductGuides\\BrandFamilies
   jasper.targetDirectory.categories=\\\\<AppServerName> \\Enterworks\\<customer specific>\\ProductGuides\\Categories

4. Open the EPX web wrapper file EPX_WEB_9040_9039_wrapper for editing. The file is located at:

   \\wa00433q\\Enterworks\EPX32\bin\

5. After the entry: wrapper.java.classpath.61=../lib/Services.jar, add the following entries:

   wrapper.java.classpath.62=../lib/com-jaspersoft-ireport-jasperserver.jar
   wrapper.java.classpath.63=../lib/com-jaspersoft-ireport.jar
   wrapper.java.classpath.64=../lib/commons-collections-3.2.jar
   wrapper.java.classpath.65=../lib/commons-digester-1.7.jar
   wrapper.java.classpath.66=../lib/commons-logging-1.0.4.jar
   wrapper.java.classpath.67=../lib/itext-2.1.7.js2.jar
   wrapper.java.classpath.68=../lib/jasperreports-5.2.0.jar
   wrapper.java.classpath.69=../lib/jasperreports-fonts-5.0.0.jar
   wrapper.java.classpath.70=../lib/jasperreports-htmlcomponent-5.0.1.jar
   wrapper.java.classpath.71=../lib/jasperserver-common-ws-5.2.0.jar
   wrapper.java.classpath.72=../lib/js_activation-1.1.jar
   wrapper.java.classpath.73=../lib/js_axis-1.4patched.jar
   wrapper.java.classpath.74=../lib/js_commons-codec-1.3.jar
   wrapper.java.classpath.75=../lib/js_commons-discovery-0.2.jar
   wrapper.java.classpath.76=../lib/js_commons-httpclient-3.1.jar
   wrapper.java.classpath.77=../lib/js_jaxrpc.jar
   wrapper.java.classpath.78=../lib/js_mail-1.4.jar
   wrapper.java.classpath.79=../lib/js_wsdl4j-1.5.1.jar
   wrapper.java.classpath.81=../lib/log4j-1.2.15.jar
   wrapper.java.classpath.82=../lib/org-openide-util-7.2.jar
   wrapper.java.classpath.83=../lib/org-openide-util-lookup-8.3.1.jar
   wrapper.java.classpath.84=../lib/servlet-api-2.4.jar
   wrapper.java.classpath.85=../lib/xercesImpl-2.10.0.jar
   wrapper.java.classpath.86=../lib/xml-apis-1.4.01.jar

6. Copy all jar files in:

   <drive>:\temp\JasperJars

   to:

   \\<AppServerName>\\Enterworks\EPX32\lib

   When prompted, overwrite any files already existing in the target directory. Contents of the <drive>temp\JasperJars directory include:

   com-jaspersoft-ireport-jasperserver.jar
   com-jaspersoft-ireport.jar
   commons-collections-3.2.jar
   commons-digester-1.7.jar
   commons-logging-1.0.4.jar
   itext-2.1.7.js2.jar
   jasperreports-5.2.0.jar
   jasperreports-fonts-5.0.0.jar
   jasperreports-htmlcomponent-5.0.1.jar
   jasperserver-common-ws-5.2.0.jar
   js_activation-1.1.jar
   js_axis-1.4patched.jar
   js_commons-codec-1.3.jar
   js_commons-discovery-0.2.jar
   js_commons-httpclient-3.1.jar
   js_jaxrpc.jar
   js_mail-1.4.jar
   js_wsdl4j-1.5.1.jar
   log4j-1.2.15.jar
   org-openide-util-7.2.jar
   org-openide-util-lookup-8.3.1.jar
   servlet-api-2.4.jar
   xercesImpl-2.10.0.jar
   xml-apis-1.4.01.jar

7. Stop Jasper services on the web server via the Services console.

8. Start Jasper services on the web server via the Services console.

9. Restart Enable services on both the web server and app server.

10. Stop EPX services on the app server by running the script (as admin):

    <drive>:/Enterworks/bin/Stop EPX.cmd.

11. Start EPX services on the app server by running the script (as admin):

    <drive>:/Enterworks/bin/Start EPX.cmd.

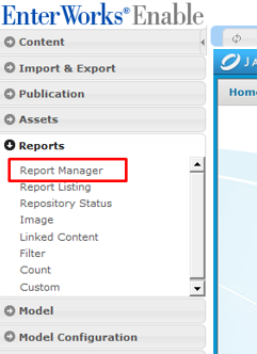

12. Log on to Enable and confirm that JasperReports is accessible from the Report Manager menu.



13. Jasper is now integrated with Enable.
