Configure SSL (Secure Socket Layer)

For a list of the encryption algorithms EnterWorks can be configured to support, see: Supported Security Specifications.

To configure EnterWorks to use SSL:

1. Obtain valid encryption certificate files.

   The customer must provide you a valid pair of encryption certificate files: a certificate file and a key file.

   • key.pem

   • cert.pem

   These files must be in PEM format and must be named as specified above. Store these files in the folder:

   <drive>:\Enterworks\certs\ssl

2. Set the configuration parameters for enable-web-server-service

   1. The create-<service-name>-service.cmd scripts should exist in the following folder. If they do not, create the create-service scripts.

      <drive>:\Enterworks\enable2020\services\install

   2. Back up:

      create_enable-web-server-service.cmd

      by copying it to:

      <drive>:\Enterworks\enable2020\services\install\archive\

   3. To facilitate troubleshooting, append the datetime to the end of the filename of the backed up file.

   4. Open create_enable-web-server-service.cmd for editing.

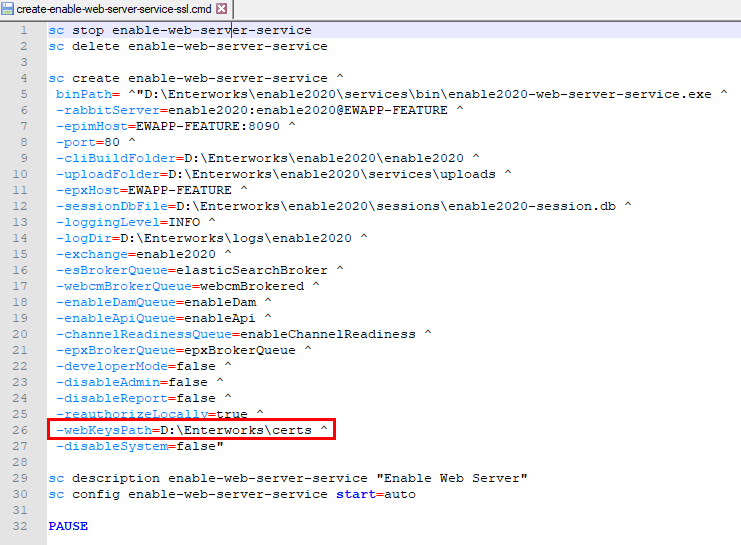

   5. If the setting -webKeysPath doesn't exist in the script, add it.

   6. Set the value of -webKeysPath to point to the folder holding the encryption files:

      -webKeysPath=<install-drive>:\Enterworks\certs\ssl

   7. Save the script and exit.

3. Recreate and register enable-web-server-service.

   Run as an Administrator:

   <drive>:\Enterworks\enable2020\services\install\create-enable-web-server-service.cmd

4. Restart all services.

EnterWorks is now configured for SSL.
