Upload Layers of the Map

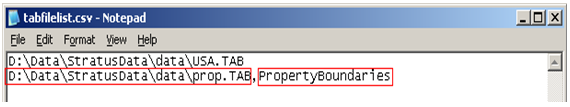

Create a file containing the list of layers that need to be uploaded and save it to the disk (e.g. d:\tabfilelist.csv).

MapInfo Stratus – Data Uploads

Format of the file:

The file contains a comma separated list of the data table and its corresponding layer name in MapInfo Stratus.
If the name of the layer is same as the name of tab file, the layer name can be omitted.
Each table / layer combination should be on a new line.

Open the command prompt by navigating to Start > Run > cmd .

Navigate to the folder containing the data uploader. For example, the default location for a 32-bit machine would be C:\Program Files\MapInfo\Stratus Map Uploader\

Launch the data uploader as shown below:

MapInfo Stratus – Launch the Data Uploader

The data uploader supports the parameters:

<Filelist>: filename with path for the file, which contains the list of tab files to upload, e.g. filelist="D:\Data\StratusData\tabfilelist.csv"
<ConfigurationFile>: (optional) The configuration file containing the server information, e.g. configurationfile=MyUploader.config
This setting allows you to override the default configuration, which is picked up from configurations used by the Uploader tool.
<Verbose>: (optional) Verbose progress reporting.
<logPath>: (optional) progress reporting to a log file at the specified path, e.g. logPath=D:\Data\StratusData

<loginConfFile>: Path to a file containing Login Credentials and Tenant Account Name. This is optional if the User has already done atleast one upload using the GUI Tool. The file format is shown below:

<?xml version="1.0"?>
<userSettings>
  <tenantName>customerstratustenant1_noida</tenantName>
  <userName>stratus_admin_1_noida@pb.com</userName>
  <userPassword>Password1</userPassword>
  <region>Americas</region>
  <serviceURL>nw.pb.com</serviceURL>
  <spbinding>StratusServiceSoapBindingUS</spbinding>
</userSettings>
