Where is it in Studio 20.2
Here are the common commands, features, and tasks in Transaction and Query, as well as Studio Options and where you can find them in Studio 20.2.
To find a command or a feature on this page quickly, press Ctrl+F to search for it.
- File, View, Map, and Run refer to the ribbon tabs at the top of the Studio window.
- Query also has Workspace and Criteria tabs.

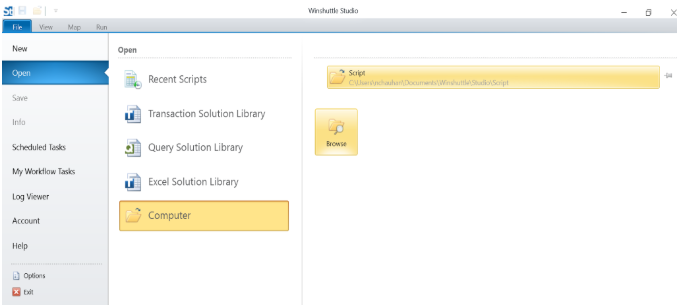

Home screen
File
Functions | Studio 20.2 location |
---|---|
New |
File > New |
Open |
File > Open |
Save script* |
File > Save Quick Access Toolbar |
Save As* |
File > Save Quick Access Toolbar |
Exit |
File > Exit |
*To save a script as a previous version, click the Version box, and then choose the version that you want.
Help
Functions |
Studio 20.2 location |
---|---|
F1 Help |
File > Help > Studio Help |
Generate support information |
File > Help > Support Information |
About |
File > Help |
Not available | File > Help > Release Notes |
Transaction

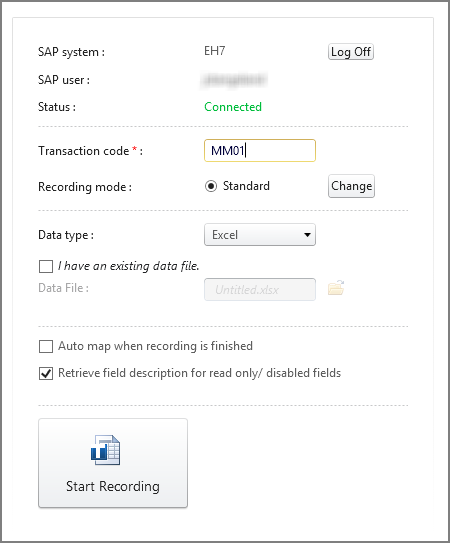

New recording
Functions | Studio 20.2 location |
---|---|
Create a recording using a t-code |
File > New > Transaction > Create from Recording |
Select fields from a Direct template |
File > New > Direct > Create from BAPI |
Recording properties
The options in the Change Recording Mode box vary, depending on whether Winshuttle Function Module is installed. For more information, see Recording modes.
Functions |
Studio 20.2 location |
---|---|
Batch Input Mode |
|
Non-Batch Input Mode (With SAP Controls) |
|
Non-Batch Input mode (Without SAP Controls) |
|
GUI Scripting |
|
Winshuttle Function Module |
|
Retrieve field descriptions for Read only/Disabled fields |
|
Title (editable field) |
|
Comments (editable field) |
|
Lock Transaction script |
|
Display Info: Transaction Version |
File > Save > Script file > Version |
Display Info: Created By, Created On |
File > Info |
Purpose of creation |
Map tab > Properties panel > Developer comments. |
Change t-code of existing recording | Map tab > Properties panel |

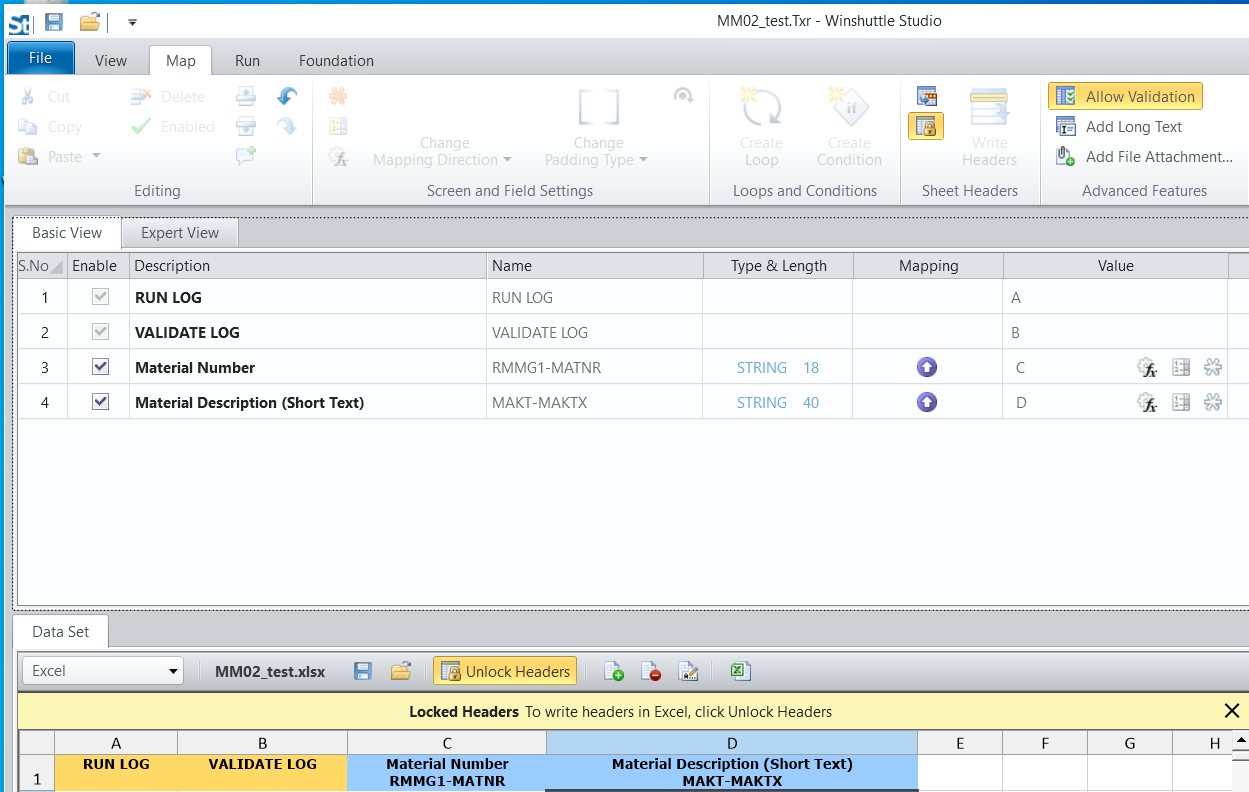

Map, Transaction
Functions | Studio 20.2 location |
---|---|
Auto Map |
Map > Auto Map |
Basic view of the Mapper |
View > Basic View |
Expert view of the Mapper |
View > Expert View |
Enable Row/Disable Row |
Mapper > Enable column Mapper > Right-click field > Enable/Disable Properties panel > Field Enabled |
Mapping Type |
Mapper > Mapping column Mapper > Right-click field > Map direction Properties panel > Map direction Map > Map direction button on the ribbon |
Loop + Apply Multi Sheet |
Map > Create Loop |
Field Description, Field Name, Values, Notes columns are editable |
Change description/values inline Change description/values from the Properties panel Add comments to fields instead of notes:
|
Condition |
Map > Create Condition |
Read from SAP |
Mapper > Mapping column > Download from SAP Mapper > Right-click field > Map direction > Download from SAP Properties panel > Map direction > Download from SAP Map > Map direction button on the ribbon > Download from SAP |
Change Source Type |
Mapper > Data Set panel |
Column Mapping > Column Based |
|
Column Mapping > Cell Based |
Map > Mapping group in the ribbon> Cell Based Mapping |
Validation Off/On |
Map > Allow Validation |
Mapper filter (Hide all disabled fields) |
View > Disabled Fields |
Mapper filter (Hide mapped fields) |
View > Mapped fields |
Mapper filter (Hide absolute value fields) |
View > Fixed Values |
Mapper filter (Hide System fields (BDC fields)) |
View > System Fields |
Find in Mapper |
Map > Mapping group in the ribbon |
Undo Mapper Change |
Map > Undo |
Refresh Mapper |
Map > Mapping group in the ribbon |
Synchronize/Synchronize All |
Map > Mapping group in the ribbon |
Cut/Copy/Paste Rows |
Map > Cut/Copy/Paste Right-click a row and click Cut or Copy, then right-click a row and click Paste. |
Delete Rows |
Map > Delete Right-click a row and click Delete |
Lock Headers |
Map > Lock Headers |
Write Headers |
Map > Write Headers |
Restore Mapping |
Map > Restore Mapping |
Excel preview, Access preview
Function |
Studio 20.2 location |
Icon |
---|---|---|
Add Sheet (Excel) |
Data Set panel > Add sheet |
|
Open (Excel) |
Data Set panel > Open a different data file (open folder button) |
|
Save (Excel) |
Data Set panel > Save the current Data Set file |
|
Adds new table (Access) |
Data Set panel > Add Table |
|
Adds new column (Access) |
Data Set panel > Add Column |
|
Change Table (Access) |
Data Set panel > Click the table name |
|
Open (Access) |
Open a different Data Set file |
|
Save (Access) |
Data Set panel > Save the current Data Set file |
Document attachment
Map > Advanced Features
Transaction properties
Properties for the script, screens and fields are on the Map tab ribbon and in the Properties panel.
Functions |
Studio 20.2 location |
---|---|
Skip Screen If Not Found |
Map > Skip If Not Present Mapper > Description column > icon Properties panel > Skip If Not Present |
Loop Column |
Properties panel > Loop Column |
Skip Transaction If Empty |
Map > Require Data Mapper > Value column > icon Properties panel > Data required |
Validate by List |
Map > Allowed Values Mapper > Value column > icon Properties panel > Allowed Values |
Run screen, Transaction
Functions |
Studio 20.2 location |
---|---|
Publish Transaction script (to an Excel file) |
Run > Script Actions group in the ribbon> Publish |
View script metadata |
File > Info |
Add script to favorites |
File > Open > Recent scripts > Pin this item |
Choose a different data file from the Run screen (Browse) |
Run > Open a different data file (open folder button above the yellow status bar) |
Open Data File |
Run > Open the data file in Excel (above the yellow status bar) |
Write Headers |
Run > Write Headers |
Start Row, End Row |
Run |
Sheet Name, Number of Rows |
Run |
Log Column, Validation Log Column (if Validation is turned on) |
Mapper > Run Log field, Validate Log field |
Run Reasons |
Dialog box opens on Run when Require Run Reason is selected. |
Run Now (Run options) |
Run > Run Run > Run Specified Range Run > Run First 5 Rows |
Run Later (Run options) |
Run > Schedule |
Run on Errors (Run options) |
Run > Run Only Error Rows |
Step-by-Step Run - Stop on all Screens |
Run > Debug Specified Range Run > Debug First Row Only |
Step-by-Step Run - Stop on Errors |
Run > Run and Stop on Errors |
Launch GUI |
Run > Start SAP GUI |
Validate |
Run > Validate |
Run progress status in the status bar |
Run progress bar below the ribbon |
Stop |
Stop (in the Run progress bar below the ribbon) |
Advanced Run options
Functions |
Studio 20.2 location |
---|---|
Close application after running |
Map > Properties panel (Script properties) |
Extended log column assignment |
Mapper > Extended Log field |
Append TimeStamp to SAP log messages |
Log field > Properties > Append Time Stamp |
Skip Field Indicator |
Run > Skip Indicator |
Delay between transactions |
Run > Upload Delay |
Link Transaction script |
Run > Chain Scripts |
Auto Logon File |
Run > Auto Logon Credentials |
Backup SAP data |
Run > Backup Data |
Run Not Posted |
Run > Run Only Unprocessed Rows |
Excel Save option |
File > Options > Data Settings |
Log Viewer > Chart, Export |
File > Log Viewer |
Scheduler (Basic view) |
File > Scheduled Tasks |
Scheduler (Ability to schedule a run from the scheduler wizard/page) |
Run > Schedule |
Authorization Check |
File > Account |
Query
New query
Functions |
Studio 20.2 location |
Icon |
---|---|---|
Data Source: Tables |
File > New > Query > Create from Tables |
|
Data Source: InfoSets/Queries |
File > New > Query > Create from InfoSet |
|
Data Source: Logical Databases |
File > New > Query > Create from Logical Database |
SAP Tables and Query Builder
Functions |
Studio 20.2 location |
---|---|
Data Dictionary tree with categories |
Workspace > Table Search > Data Dictionary |
Restore Master Data Dictionary |
Right-click the top level of the Data Dictionary |
Data Dictionary category options: Add Sub Category Rename Category Delete Category Add Table to Category Synchronize |
Right-click a Data Dictionary category |
Data Dictionary table options: Add SAP Table to Workspace Remove Table |
Right-click a Data Dictionary table |
Data Dictionary: Search by Table |
Workspace > Table Search |
Add Table |
Workspace > Add Table |
Remove Table |
Workspace > select the table > Remove Table |
Inspect Table |
Workspace > select the table > Inspect Table |
Show in Data Dictionary |
Workspace > select the table > Show in Data Dictionary |
Quick Add tables |
Workspace > Quick Add box > Add to Workspace |
Table options: Sort by Field Description Sort by Field Name Sort by Field Selection Default Field Sorting |
Right-click the table in the workspace |
Join options |
Workspace > Find Joining Table Right-click the join |
Convert Join |
Workspace > Convert Join |
Remove Join |
Workspace > Remove Join |
Criteria
Functions |
Studio 20.2 location |
---|---|
Criteria pane, Output |
Workspace > table > Output check box |
Criteria pane, Selection |
Workspace > table > Criteria check box |
Criteria pane, Field Description |
Workspace > table > Name Description |
Criteria pane, Selection Type |
Criteria > Criteria group in the ribbon |
Criteria pane, Where Clause |
Criteria |
Criteria pane, Required |
Criteria > Criteria group in the ribbon > Require Data |
Map, Query
Functions |
Studio 20.2 location |
---|---|
Auto Map |
Map > Auto Map |
Enable Row/Disable Row |
Mapper > Enable column Mapper > Right-click the field > Enable/Disable Properties panel > Field Enabled |
Mapping Type |
Mapper > Mapping column Mapper > Right-click field > Map direction Properties panel > Map direction |
Excel Expression Expression Evaluation cell Transform Original Mapping Expression Evaluation Description Validate |
Map > select field in the Mapper > Add Transform Mapper > icon in the Mapped to Column column Properties panel > Transform formula icon |
Preview Run |
Map > Preview Run |
Only English syntax formulas are recognized; when used in an Excel sheet for German, French, or Spanish, an error is returned.
Excel preview, Access preview
Functions |
Studio 20.2 location |
Icon |
---|---|---|
Open (Excel) |
Data Set panel > Open a different data file (open folder button) |
|
Save (Excel) |
Data Set panel > Save the current Data Set file |
Query properties and options
Functions |
Studio 20.2 location |
---|---|
QUERY Script Properties box:
|
Map > Properties panel |
QUERY Script Properties box:
|
File > Save** |
**To save a script as a previous version, click the Version box, and choose the version that you want.
Run screen, Query
Functions |
Studio 20.2 location |
---|---|
Publish |
Run > Publish |
Write Headers |
Run > Write Headers |
Start Row |
Run |
Sheet Name, Number of Rows |
Run |
Run reason |
Dialog box opens on Run when Require Run Reason is selected. |
Run Now |
Run > Run Run > Run Specified Range Run > Run First 5 Rows |
Run Later |
Run > Schedule |
Background Mode |
Run > Start Background Mode |
Run as SAP Background Process |
Run > Run as SAP Background Process |
Adaptive Query Throttling |
Run > Enable Adaptive Query Throttling |
No. of entries |
Run > Number of Entries |
Tools > Options
For more details, see Studio Options.
Application Defaults
Functions |
Studio 20.2 location |
---|---|
Path defaults |
File > Options > Locations |
Microsoft Excel defaults |
File > Options > Data |
Log Column | Can choose between first column and last column or specify column in the Mapper |
Use Excel Spreadsheet in Mapper Preview | Studio 20.2 displays the Excel sheet in Spreadsheet Gear mode |
Run Excel in the background mode | Studio 20.2 runs Excel in the background but does not launch Excel |
Data read preference |
File > Options > Data |
Number of rows to remain empty before run stops |
File > Options > Data |
Default No. of records in Recent and Favorite |
File > Options > Data Settings |
Skip Field Indicator |
File > Options > Data |
Trim data before uploading into your SAP System |
File > Options > Data |
Default number of records to download | File > Options > Data |
SAP Defaults
Functions |
Studio 20.2 location |
---|---|
Logon defaults |
File > Options > SAP Settings |
Recording defaults |
File > Options > SAP Settings |
Allow multithreaded SAP GUI launch |
File > Options > SAP Settings |
User Data Formats | File > Options > Data |
Error Management
Functions |
Studio 20.2 location |
---|---|
For Excel |
Common for all data files: File > Options > Logs & Errors |
For Access |
Common for all data files: File > Options > Logs & Errors |
Trace (Application, SAP) |
File > Options > Logs & Errors |
Additional options
Functions |
Studio 20.2 location |
---|---|
ALF Management |
Advanced SAP Logon dialog box |
Production Server Warning |
File > Options > Production Server Warning |
Client Connection Settings |
File > Options > Proxy & Email |
Header Log Details |
File > Options > Logs & Errors |
Restore Defaults |
File > Options |
Miscellaneous commands and features
Functions |
Studio 20.2 location |
---|---|
Change language from the status bar |
File > Help > Language list |
SAP Server Connection information in the status bar |
Status bar |
Logged-on user's welcome message |
Status bar |
Online/offline icon in status bar |
Logged-on user's name in the status bar |
