Publishing in Designer and template import in Server Admin

Publishing in EngageOne™ Designer

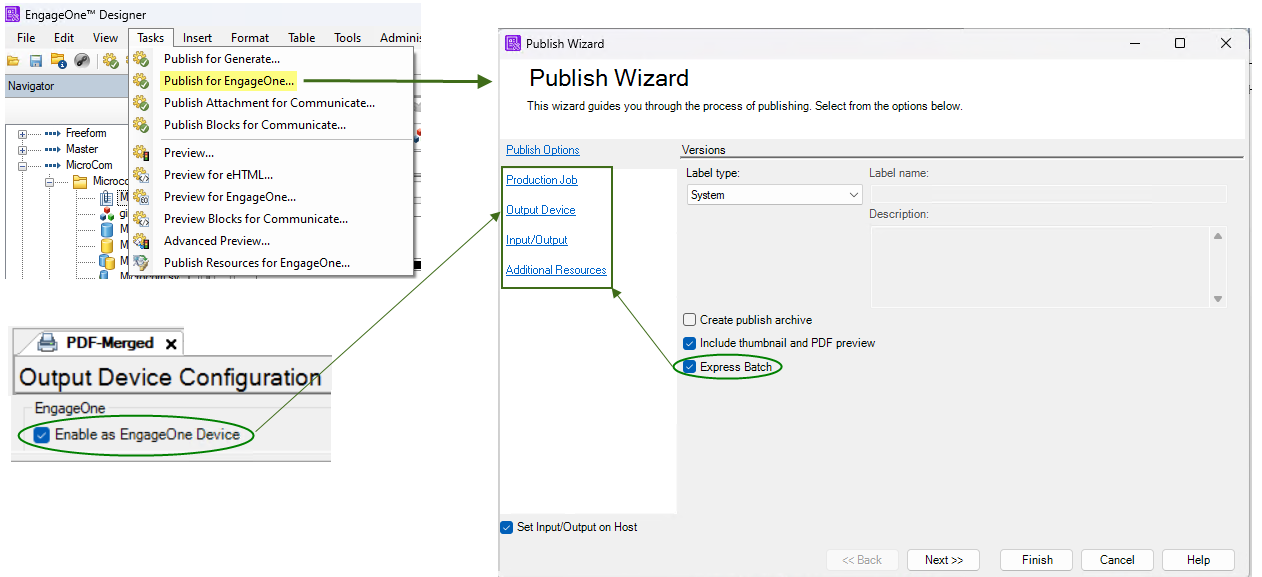

When publishing non-interactive templates, if you want to use the Express Batch document composition route, use the option Publish to EngageOne, this launches the Publish Wizard, select the Express Batch option, as shown below.

Note that the output device associated with the publish must have the Enable as EngageOne Device selected in its Ouput Device Configuration

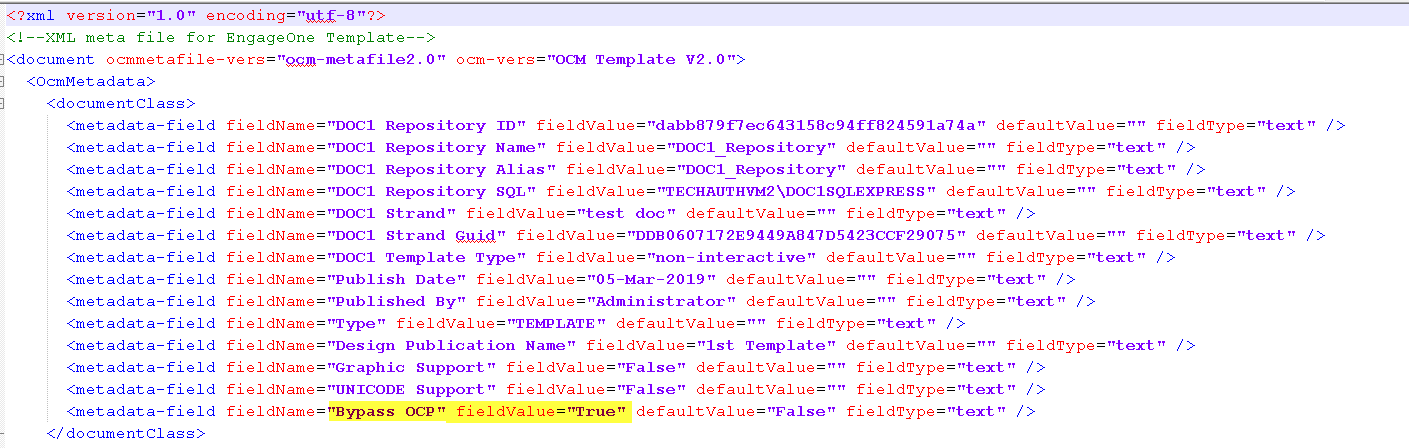

Publishing in this way results in a ZIP file containing resources required when importing your template in EngageOne Admin. The ZIP file contains a template_Master.xml file which holds configuration information. An Express Batch compatible template will have its Bypass OCP field set to true as highlighted below.

Importing your template in EngageOne™ Admin

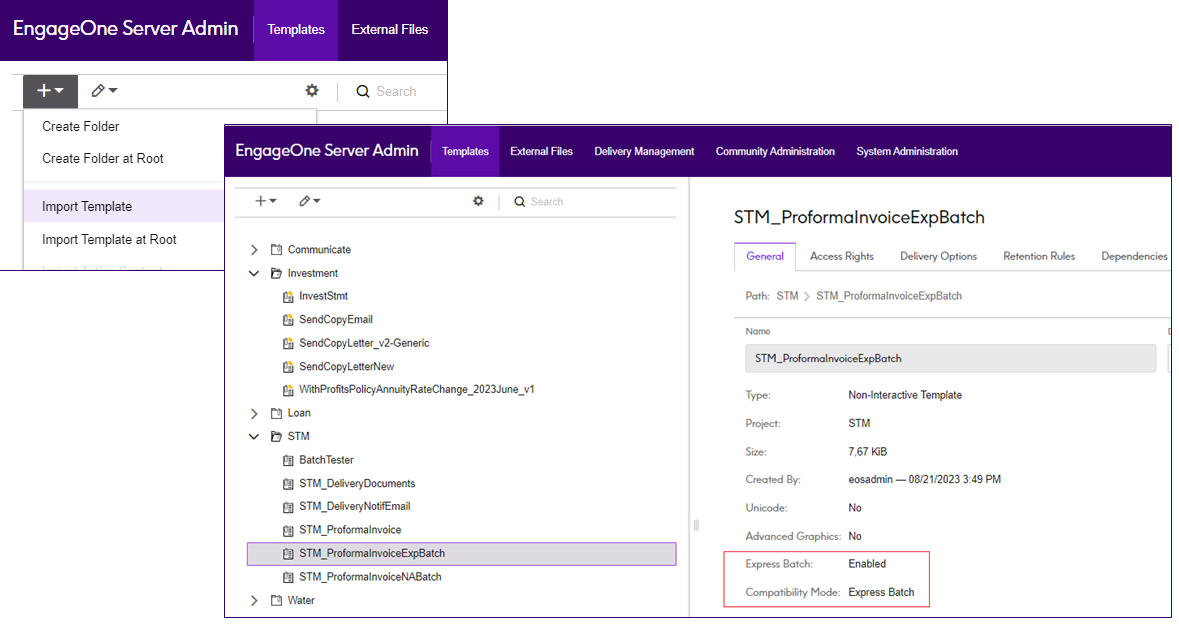

Click Import Template and use Windows Explorer to locate the ZIP file created by Publish for EngageOne processing in Designer.

If your template is correctly configured in Designer, the Express Batch and Compatibility Mode fields are set to Enabled and Express Batch respectively.
