PDR1518S

Invalid <ORIENT> value characterOrientation. Must be in the range 1 to 4.

What happened: You specified an Add group <ORIENT> tag characterOrientation value other than 1, 2, 3, or 4. The invalid orientation value is given.

What to do: Specify 1 as the orientation value to rotate the individual characters 0° on the physical printed page relative to a portrait presentation; specify 2 to rotate the individual characters 90°; specify 3 to rotate the individual characters 180°; or specify 4 to rotate the individual characters 270°. The <ORIENT> tag characterOrientation value does not affect the origin from which the top left corner of the barcode or text is measured.

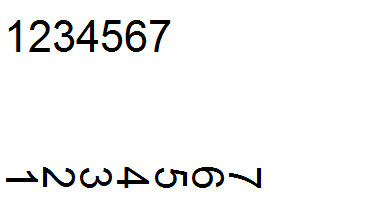

The image below illustrates the distinction between the text orientation, and the character orientation. The top text is using characterOrientation 1 and the bottom is using 2.
