complexType StyleAttributeDefinition

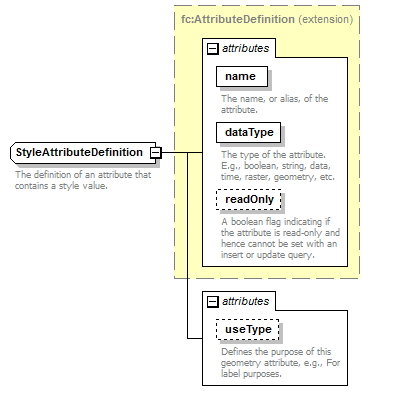

diagram feature_p197.png
namespace http://www.mapinfo.com/midev/service/featurecollection/v1
type extension of fc:AttributeDefinition
properties
base   fc:AttributeDefinition
attributes
Name    Type    Use    Default    Fixed    Annotation
name    xsd:string    required
The name, or alias, of the attribute.
dataType    fc:AttributeDataType    required
The type of the attribute. E.g., boolean, string, data, time, raster, geometry, etc.
readOnly    xsd:boolean
A boolean flag indicating if the attribute is read-only and hence cannot be set with an insert or update query.
useType    fc:UseType    optional
Defines the purpose of this geometry attribute, e.g., For label purposes.
description
The definition of an attribute that contains a style value.

attribute StyleAttributeDefinition/@useType
type fc:UseType
properties
use   optional
facets
Kind   Value   Annotation
enumeration   Feature
enumeration   Label
enumeration   Unspecified
description
Defines the purpose of this geometry attribute, e.g., For label purposes.
