Grouping stages into an embedded flow
An embedded flow groups stages together into a single stage, allowing you to simplify the layout of complex flows and set processing options using field values.
- In your flow, add the stages that you want to convert to an embedded flow.
-
Select the stages you want to convert to an embedded flow by clicking and
dragging a box around the stages.

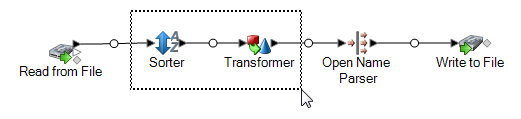

For example, this would select the Sorter and Transformer stages to convert to an embedded flow.
Note: Report stages cannot be included in an embedded flow. - Right-click one of the selected stages and select Group into Embedded Dataflow
- Enter a name for the embedded flow. The name will be used as the label for the embedded flow stage on the canvas.
- Click OK.
The stages you selected are now grouped into an embedded flow. This example shows an embedded flow named SortTansform.
