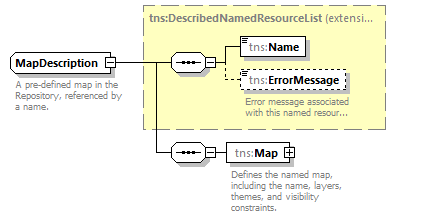

complexType MapDescription

diagram
namespace	http://www.mapinfo.com/midev/service/mapping/v1
type	extension of tns:DescribedNamedResourceList
properties	base  tns:DescribedNamedResourceList
children	tns:Name tns:ErrorMessage tns:Map
used by	element  MapDescriptions/MapDescription
annotation	documentation A pre-defined map in the Repository, referenced by a name.

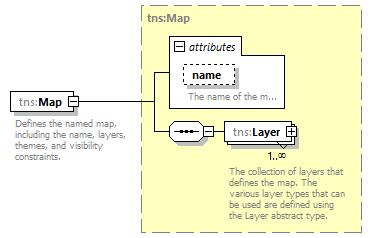

element MapDescription/Map

diagram
namespace	http://www.mapinfo.com/midev/service/mapping/v1
type	tns:Map
properties	content  complex
children	tns:Layer
used by	complexTypes  DescribeNamedMapResponse GetMapLegendsRequest RenderMapRequest
attributes	Name   Type   Use   Default   Fixed   Annotation name   xsd:string   optional         documentation The name of the map.
annotation	documentation Defines the named map, including the name, layers, themes, and visibility constraints.
