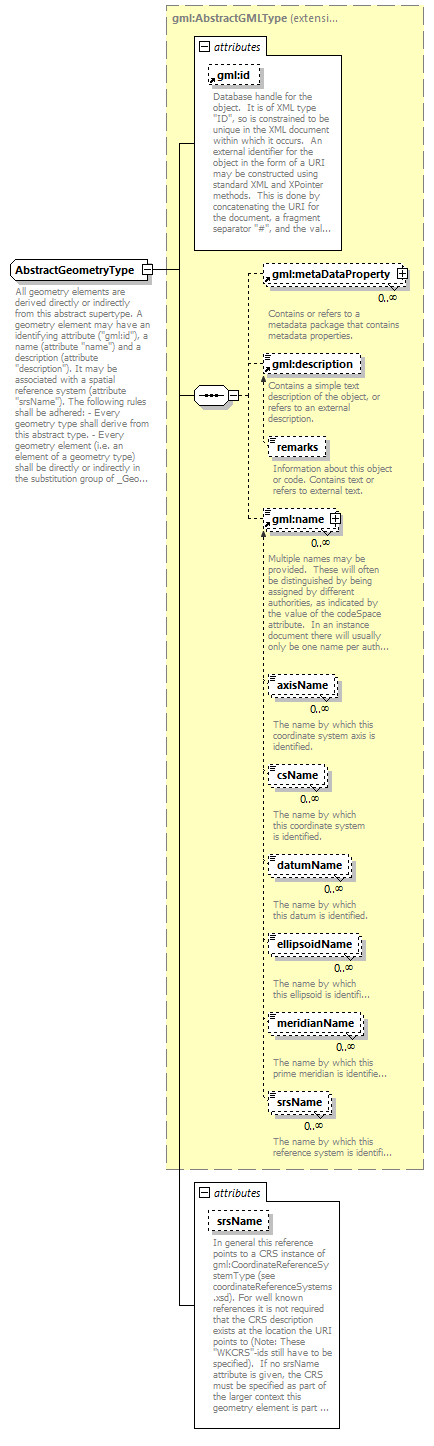

| diagram |
 |
| namespace |
http://www.opengis.net/gml |
| type |
extension of gml:AbstractGMLType |
| properties |
| base | gml:AbstractGMLType | | abstract | true |
|
| children |
gml:metaDataProperty gml:description gml:name |
| used by |
|
| attributes |
| Name | Type | Use | Default | Fixed | Annotation | | gml:id | xs:ID | optional | | | | documentation | | Database handle for the object. It is of XML type "ID", so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator "#", and the value of the id attribute. |
| | srsName | xs:anyURI | optional | | | | documentation | | In general this reference points to a CRS instance of gml:CoordinateReferenceSystemType (see coordinateReferenceSystems.xsd). For well known references it is not required that the CRS description exists at the location the URI points to (Note: These "WKCRS"-ids still have to be specified). If no srsName attribute is given, the CRS must be specified as part of the larger context this geometry element is part of, e.g. a geometric aggregate. |
|
|
| annotation |
| documentation | | All geometry elements are derived directly or indirectly from this abstract supertype. A geometry element may have an identifying attribute ("gml:id"), a name (attribute "name") and a description (attribute "description"). It may be associated with a spatial reference system (attribute "srsName"). The following rules shall be adhered: - Every geometry type shall derive from this abstract type. - Every geometry element (i.e. an element of a geometry type) shall be directly or indirectly in the substitution group of _Geometry. |
|
