element ColumnHint

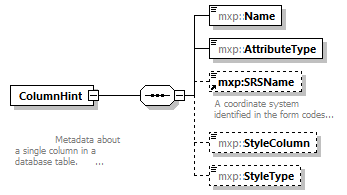

diagram
namespace	http://www.mapinfo.com/mxp
properties	content  complex
children	mxp:Name mxp:AttributeType mxp:SRSName mxp:StyleColumn mxp:StyleType
used by	element  ColumnHints
annotation	appinfo deprecated documentation Metadata about a single column in a database table.

element ColumnHint/Name

diagram
namespace	http://www.mapinfo.com/mxp
type	xs:string
properties	content  simple

element ColumnHint/AttributeType

diagram
namespace	http://www.mapinfo.com/mxp
type	mxp:AllAttributeTypeType
properties	content  simple

element ColumnHint/StyleColumn

diagram
namespace	http://www.mapinfo.com/mxp
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple

element ColumnHint/StyleType

diagram
namespace	http://www.mapinfo.com/mxp
type	restriction of xs:string
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  NONE enumeration  MAPBASIC
