element Component

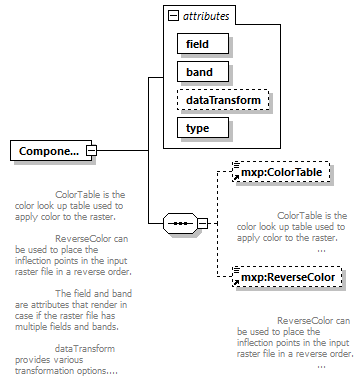

diagram mws_p566.png
namespace http://www.mapinfo.com/mxp
properties
content complex
children mxp:ColorTable mxp:ReverseColor
used by
element RenderStyle
attributes
Name  Type  Use  Default  Fixed  Annotation
field  xs:integer  required
band  xs:integer  required
dataTransform  xs:IDREF
type  mxp:ComponentType  required
annotation
documentation

ColorTable is the color look up table used to apply color to the raster.
ReverseColor can be used to place the inflection points in the input raster file in a reverse order.
The field and band are attributes that render in case if the raster file has multiple fields and bands.
dataTransform provides various transformation options.

attribute Component/@field
type xs:integer
properties
use required

attribute Component/@band
type xs:integer
properties
use required

attribute Component/@dataTransform
type xs:IDREF

attribute Component/@type
type mxp:ComponentType
properties
use required
facets
Kind Value Annotation
enumeration Red
enumeration Green
enumeration Blue
enumeration Image
enumeration Color
