complexType RangeThemeType

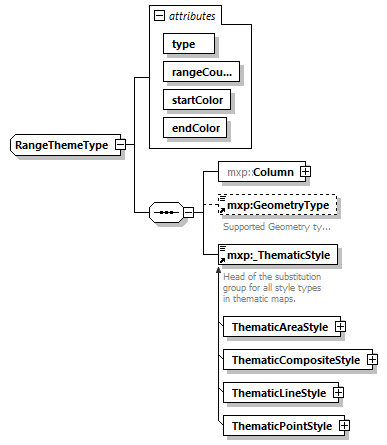

diagram namedproject_p185.png
namespace http://www.mapinfo.com/mxp
children mxp:Column mxp:GeometryType mxp:_ThematicStyle
used by
element ThematicLayerBusinessMap/RangeTheme
attributes
Name  Type  Use  Default  Fixed  Annotation
type  mxp:RangeValueType  required
rangeCount  xs:int  required
startColor  mxp:CSS2ColorType  required
endColor  mxp:CSS2ColorType  required

attribute RangeThemeType/@type
type mxp:RangeValueType
properties
use required
facets
Kind Value Annotation
enumeration equalRange
enumeration equalCount
enumeration standardDeviation

attribute RangeThemeType/@rangeCount
type xs:int
properties
use required

attribute RangeThemeType/@startColor
type mxp:CSS2ColorType
properties
use required

attribute RangeThemeType/@endColor
type mxp:CSS2ColorType
properties
use required

element RangeThemeType/Column
diagram namedproject_p186.png
namespace http://www.mapinfo.com/mxp
type mxp:ColumnType
properties
content complex
attributes
Name  Type  Use  Default  Fixed  Annotation
name  xs:string  required
dataType  xs:string
