complexType FeatureCollection

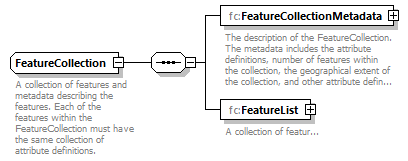

diagram
namespace	http://www.mapinfo.com/midev/service/featurecollection/v1
children	fc:FeatureCollectionMetadata fc:FeatureList
used by	element  FeatureCollection
annotation	documentation A collection of features and metadata describing the features. Each of the features within the FeatureCollection must have the same collection of attribute definitions.

element FeatureCollection/FeatureCollectionMetadata

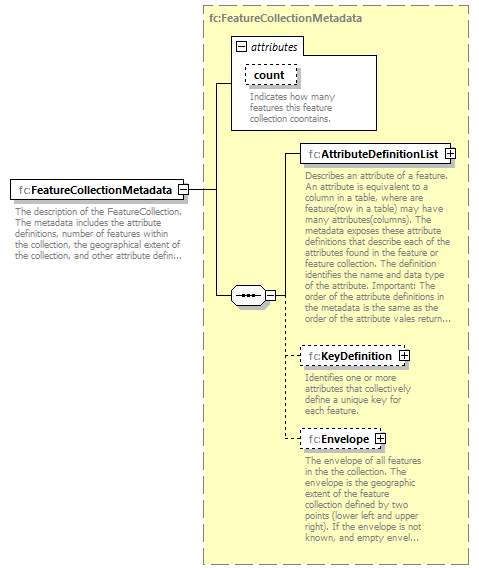

diagram
namespace	http://www.mapinfo.com/midev/service/featurecollection/v1
type	fc:FeatureCollectionMetadata
properties	content  complex
children	fc:AttributeDefinitionList fc:KeyDefinition fc:Envelope
attributes	Name   Type   Use   Default   Fixed   Annotation count   xsd:long   optional         documentation Indicates how many features this feature collection coontains.
annotation	documentation The description of the FeatureCollection. The metadata includes the attribute definitions, number of features within the collection, the geographical extent of the collection, and other attribute definitions.

element FeatureCollection/FeatureList

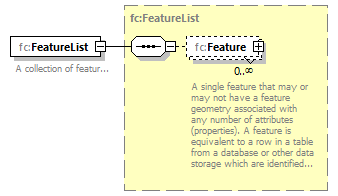

diagram
namespace	http://www.mapinfo.com/midev/service/featurecollection/v1
type	fc:FeatureList
properties	content  complex
children	fc:Feature
annotation	documentation A collection of features.
