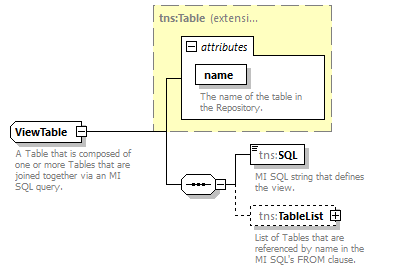

complexType ViewTable

diagram
namespace	http://www.mapinfo.com/midev/service/table/v1
type	extension of tns:Table
properties	base  tns:Table
children	tns:SQL tns:TableList
attributes	Name   Type   Use   Default   Fixed   Annotation name   xsd:string   required         documentation The name of the table in the Repository.
annotation	documentation A Table that is composed of one or more Tables that are joined together via an MI SQL query.

element ViewTable/SQL

diagram
namespace	http://www.mapinfo.com/midev/service/table/v1
type	xsd:string
properties	content  simple
annotation	documentation MI SQL string that defines the view.

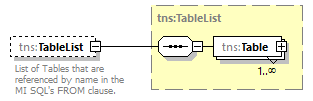

element ViewTable/TableList

diagram
namespace	http://www.mapinfo.com/midev/service/table/v1
type	tns:TableList
properties	minOcc  0 maxOcc  1 content  complex
children	tns:Table
annotation	documentation List of Tables that are referenced by name in the MI SQL's FROM clause.
