complexType AbstractGeoCodingServiceType

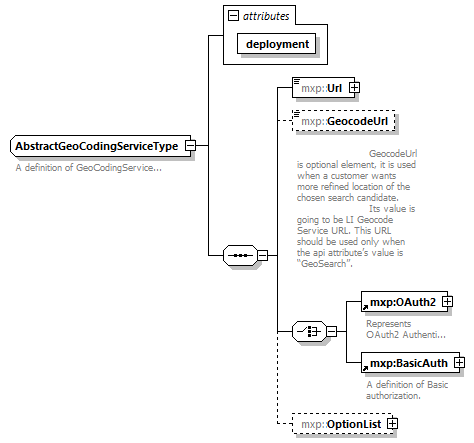

diagram
namespace	http://www.mapinfo.com/mxp
properties	abstract  true
children	mxp:Url mxp:GeocodeUrl mxp:OAuth2 mxp:BasicAuth mxp:OptionList
used by	elements  _GeoCodingService EGMService GGMService
attributes	Name   Type   Use   Default   Fixed   Annotation deployment   mxp:DeploymentType   required
annotation	documentation A definition of GeoCodingServiceType.

attribute AbstractGeoCodingServiceType/@deployment

type	mxp:DeploymentType
properties	use  required
facets	Kind  Value  Annotation enumeration  SpectrumOnPremiseDeprecatedAPI enumeration  SpectrumOnPremise enumeration  SpectrumOnDemand enumeration  PBDeveloperAPIs

element AbstractGeoCodingServiceType/Url

diagram
namespace	http://www.mapinfo.com/mxp
type	extension of xs:string
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation api   mxp:APIType

attribute AbstractGeoCodingServiceType/Url/@api

type	mxp:APIType
facets	Kind  Value  Annotation enumeration  GeoCode enumeration  GeoSearch

element AbstractGeoCodingServiceType/GeocodeUrl

diagram
namespace	http://www.mapinfo.com/mxp
type	xs:anyURI
properties	minOcc  0 maxOcc  1 content  simple
annotation	documentation                         GeocodeUrl is optional element, it is used when a customer wants more refined location of the chosen search candidate.                         Its value is going to be LI Geocode Service URL. This URL should be used only when the api attribute’s value is “GeoSearch”.

element AbstractGeoCodingServiceType/OptionList

diagram
namespace	http://www.mapinfo.com/mxp
type	mxp:OptionListType
properties	minOcc  0 maxOcc  1 content  complex
children	mxp:Option
