Enabling and using the relay-service-client

You can enable the relay-service-client by configuring the following property found in the deploy.properties file:

relay.service.client.enabled

Once relay-service-client is enabled it is deployed in core bundle at which point it can be accessed via:

http/https:<core bundle url>:<core bundle port>/relay-service-client
For example:
https://eo-core-bundle-node1:8080/relay-service-client
It is important to note that where the core bundle is in a clustered setting, accessing the

relay-service-client is performed under a loadBalancer url e.g.:

https://eo-core-bundle-loadBalancer:8080/relay-servcie-client

This will cause the relay-service-client to monitor or diagnoses websocket traffic on one node depending on the loadBalancer redirect. To investigate issues in the environment effectively you will need to connect to all core bundles in cluster. The example below illustrates a scenario where the core bundle has two nodes:

https://eo-core-bundle-node1:8080/relay-service-client
and
https://eo-core-bundle-node2:8080/relay-service-client

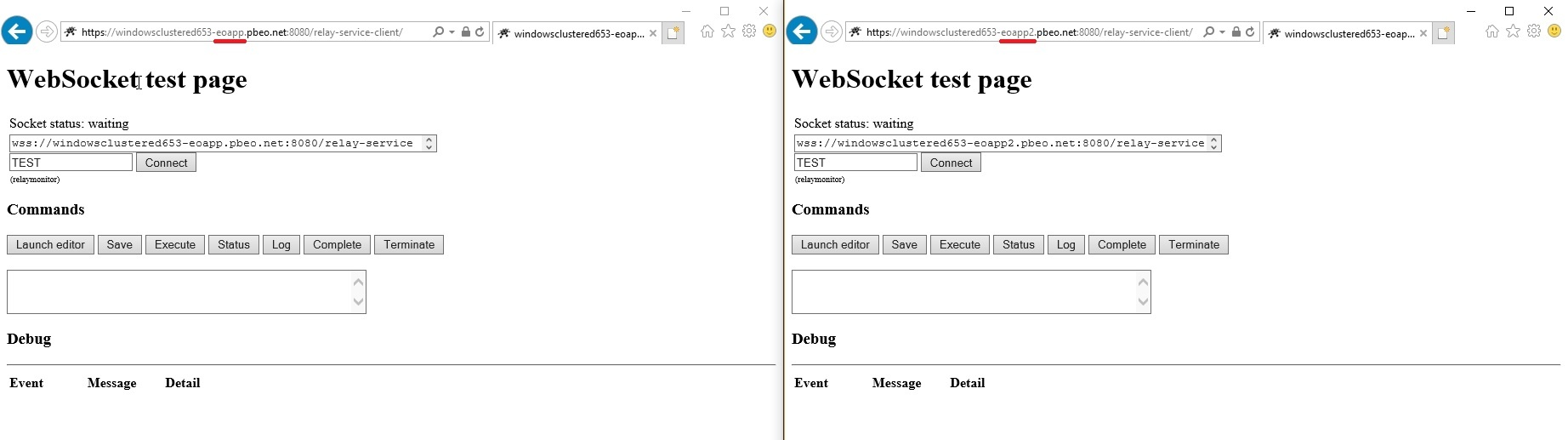

To send message from one relay-service-client instance to another:
  • Open two relay-service-client instances.
  • Specify randomly named sessionID (next to Connect button)
  • Click Connect.

When the websocket channel has been establish you can send messages between clients by executing the appropriate command button e.g. Save, Execute, Status, Log, Complete.
