Monitoring websocket communication

If you wish to monitor websocket communication you can run the relay-service-client in Monitor Mode. In this mode of operation the Monitor Mode relay-service-client allows you to view all communication exchanges between EngageOne™ Interactive and the Interactive Editor for all sessions.

To enable Monitor Mode:

  1. Set the following property in viewpoint.properties file of core bundle set to true:
    relay.service.client.monitor.mode.enabled

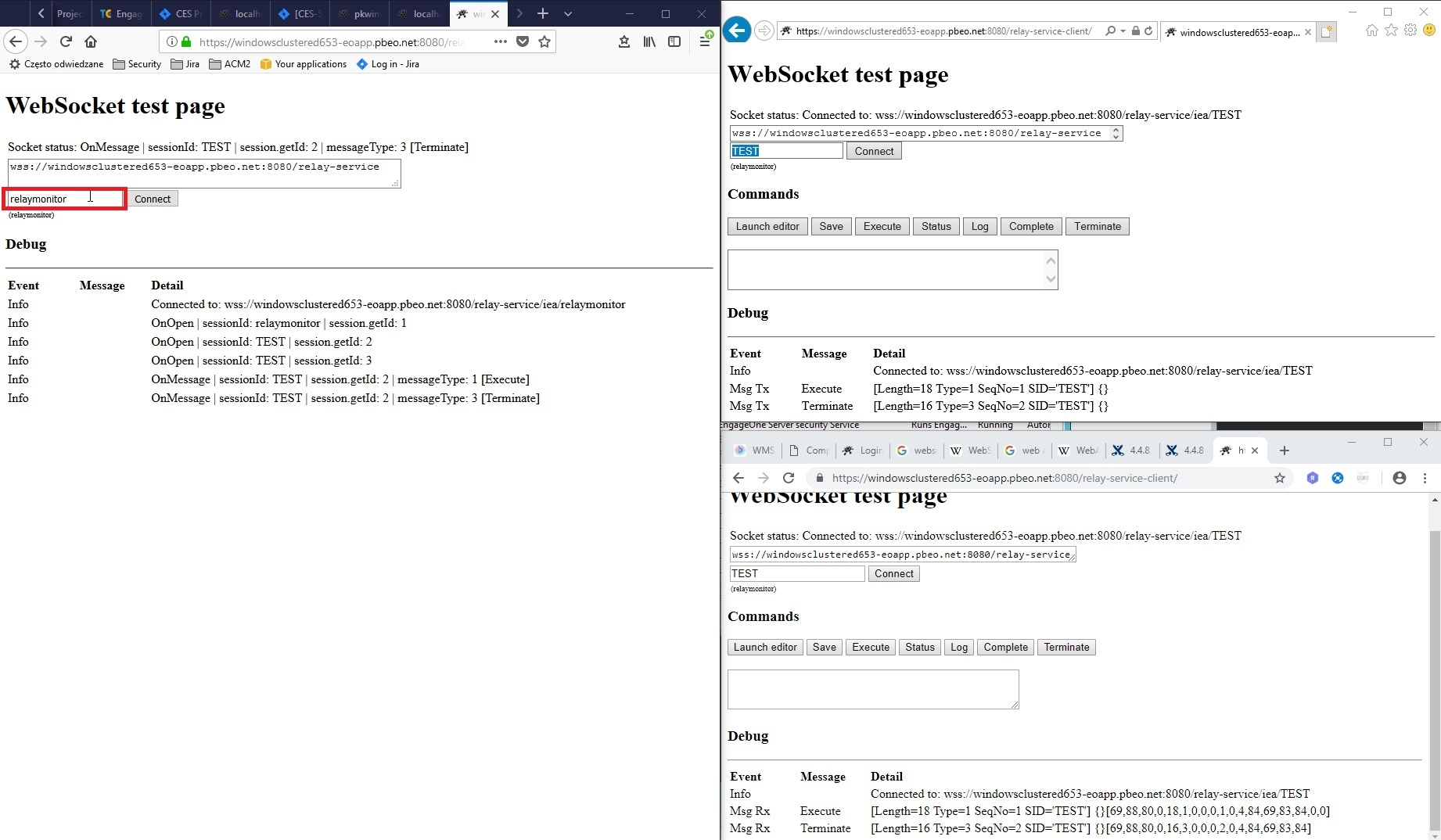

  2. On the relay-service-client page type relaymonitor in sessionID text field (next to the Connect button) .
  3. Click Connect.

At this point the relay-service-client should present all websocket traffic on the specific node.
