Defining Page Layout

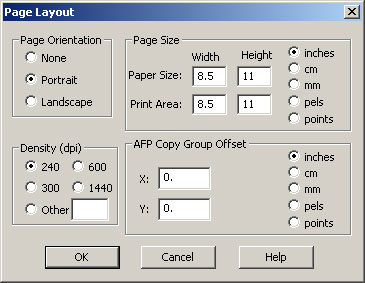

The Page Layout window lets you define options for adding objects such as barcodes or text to the documents. To access this window, open a print stream, select File > Print Stream Properties, and then click Page Layout.

The fields in this window are described next.

Page Orientation

• None: Select this option if a page presentation is not defined in the copy group for an AFP input. If this is the case then Enrichment uses the presentation defined in the active FORMDEF.
• Portrait: Select this option if the copy group for an AFP input specifies that the page is vertically oriented (that is, the page is taller than it is wide).
• Landscape: Select this option if the copy group for an AFP input specifies that the page is horizontally oriented (that is, the page is wider than it is tall).

Page Size

• Paper Size: Type the width and height of the sheet of paper using the selected unit of measure.
• Print Area: Type the width and height of the printable area of each page using the selected unit of measure.

Density (dpi)

Select the density at which each page should print. If you select Other, type a number between 100 to 3,000 to indicate the specific number of pels per inch to print.

AFP Copy Group Offset

• X: Type the distance from the origin point to the x offset to establish where added objects should be placed. The setting can be from 0 to 100 inches, or the equivalent. The origin depends upon whether the FORMDEF is set for portrait or landscape presentation.
• Y: Type the distance from the origin point to the y offset to establish where added objects should be placed. The setting can be from 0 to 100 inches, or the equivalent.
