Viewing resource properties

There may be times when you want to view the properties of a font or image. For example, if you have two images of the same name from a different (or even the same) repository, you can expand the image in the Resources tab to examine its properties.

Use Export Resource List to resolve any resource problems. For more information, see Exporting resources.

To view font and image resource properties:

  1. From the Delivery Management tab, click the Resources tab.
  2. Expand the Fonts, Images or Advanced Features item.

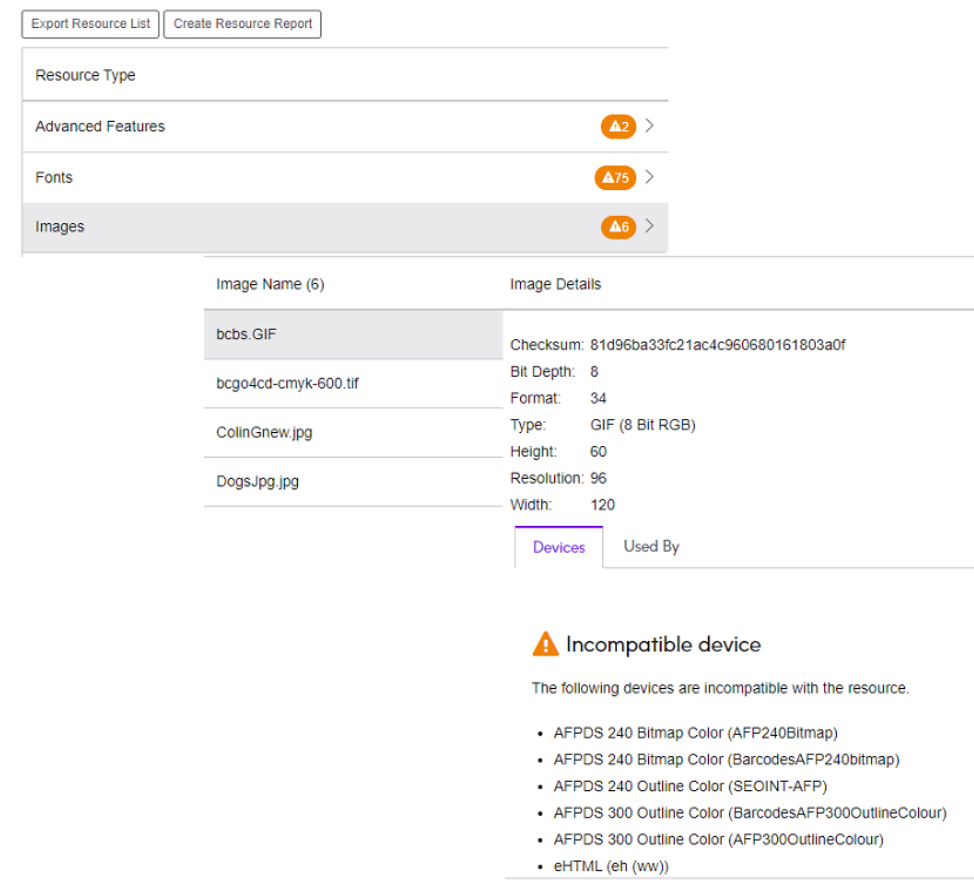

    Note: the image above illustrates the standard resources view.

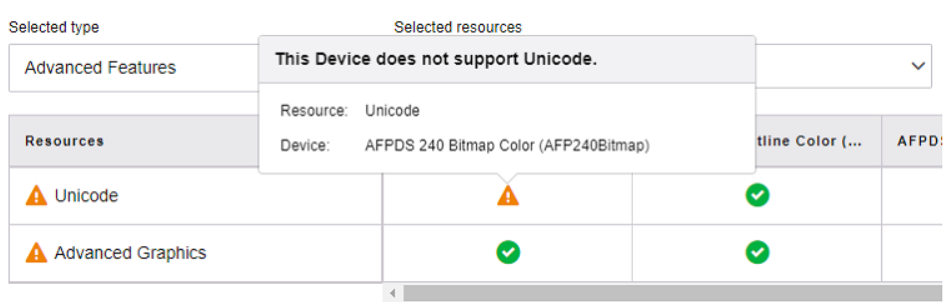

  3. Select Advanced View to switch between Advanced and standard resource views. The Advanced View, is tabular in format and presents information for the selected resource type, where each column in the table represent an output device. An orange triangular exclamation mark indicates that for Fonts/Images the resource are missing, and for Advanced Feature items that the feature is not supported.

    For descriptions of each property, see Template management.
